My random thread of electrical questions

by bodgetastic » Thu Apr 24, 2014 8:07 pm

I'm doing a bit of re-wiring (which is only going to end badly :lol: )

This is largely due to the cannibal that wired in my ECU and have found wires changing colours 3 to 4 times in a matter of inch's so I can see me asking a few questions.

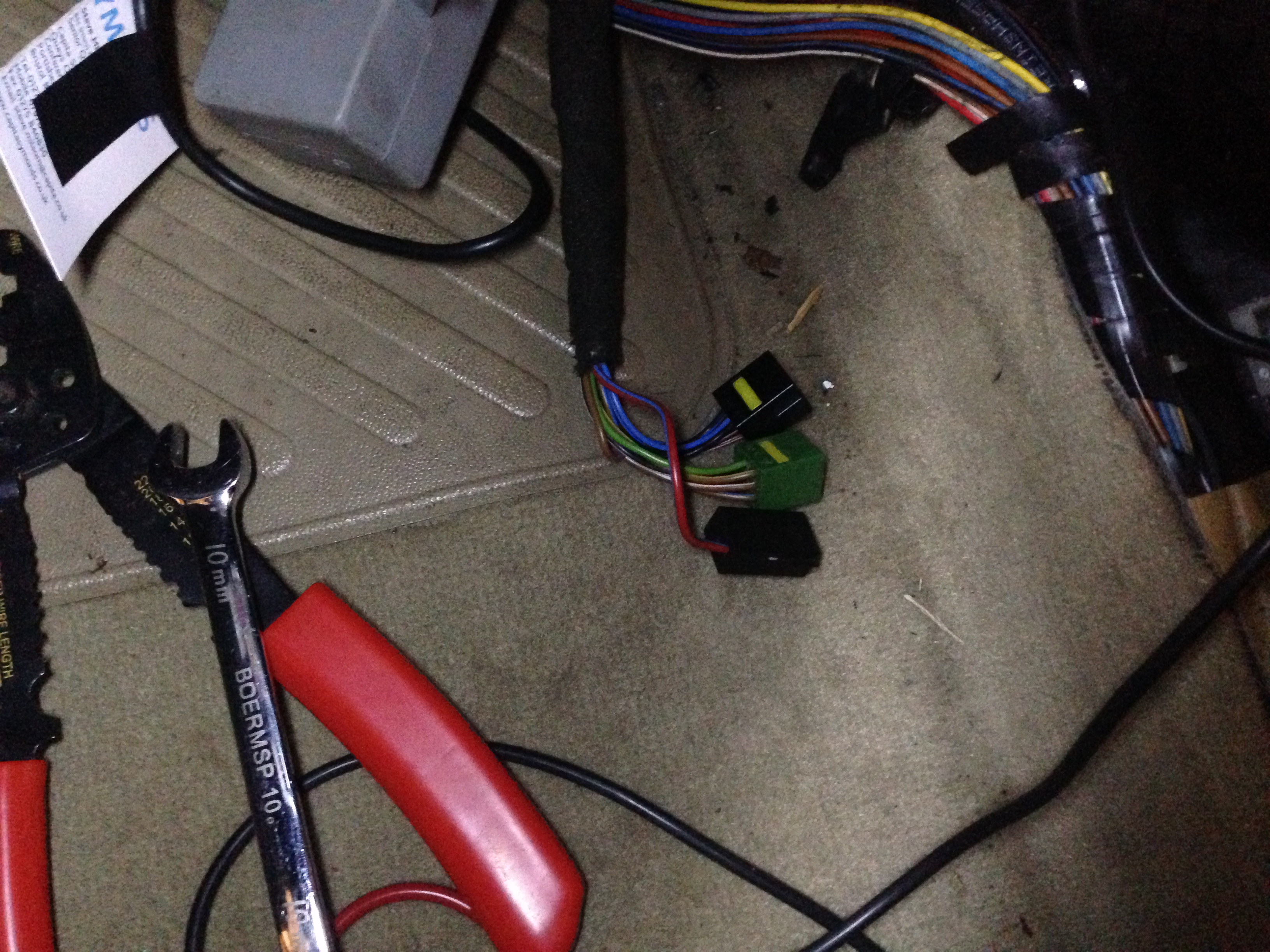

So starter for 10, does anyone know what these 3 plugs are for in the footwell. I'm guessing one is fuel pump?
Attachments
More power than God
User avatar
Site Moderator
Site Moderator

Posts: 1576
Joined: Tue Feb 10, 2004 1:00 pm
Location: Button Moon

Re: My random thread of electrical questions

by glenn14 » Fri Apr 25, 2014 1:37 pm

The black plug with the red/blue wire looks like fuel pump feed
Club Member
Club Member

Posts: 78
Joined: Sat Jan 06, 2007 12:19 am
Location: Bury St Edmunds

Re: My random thread of electrical questions

by glenn14 » Sat Apr 26, 2014 6:34 pm

There just plugs mate not the relay connections they sit in font of the fuel pump relay and central locking ecu
Club Member
Club Member

Posts: 78
Joined: Sat Jan 06, 2007 12:19 am
Location: Bury St Edmunds

Re: My random thread of electrical questions

by markwilliams » Fri Nov 28, 2014 6:48 am

looks like for the heated seat switches and the 12v socket to me!

Sorry about the slightly late response :D
User avatar
Club Member
Club Member

Posts: 20
Joined: Thu May 29, 2014 7:08 am
Location: Lower Kingswood, Surrey

Re: My random thread of electrical questions

by DanSE4 » Fri Nov 28, 2014 10:15 am

They're from the dash loom to connect to the engine loom behind the kick panel in the footwell (the male ends of those should be clipped to the black, plastic bracket which is mounted below the bonnet release lever near the ECU).

I can't name them individually but there's a couple of constant lives, ignition switching live, speed/rpm signal & I think one is for the OBD to read the ECU. Some of the colours are listed as to what they are in the paperwork James got with his Saab adapter but that's no-where near me right now to refer to I'm afraid.


*EDIT*

Stolen from Nige over on Mig;

•Fuel Pump Output
•Permanent supply
•ignition supply
•RPM output to dash
•Speed signal input from ABS or some other source
•Engine management light
•OBD k line

Couldn't tell you which is which though without the paperwork I don't have on me! :lol:
